Derma Medical Systems offers DELM technology
at its best!

MoleMax™ systems always incorporate
the latest available technology
within the MoleMax product range!

Join the community of over 3,000 users
in more than 70 countries worldwide!

Derma Medical Systems improves patient care
by offering Digital Dermoscopy
and much more!

Whether melanoma, skin cancer,
or chronic skin conditions such as psoriasis,
eczema, and acne,
Derma Medical Systems has developed
a leading technology platform
to improve patient care!

Derma Medical Systems provides best practice
for doctor and patient!

Follow-up of suspect skin lesions
using camera images and DELM technology
is now the recognized EBM standard
for improved patient care and safety.

It helps reduce unnecessary surgical excisions
for the benefit of both patient and doctor!

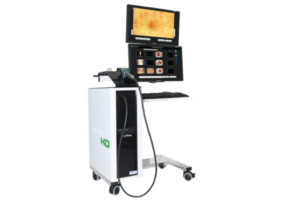

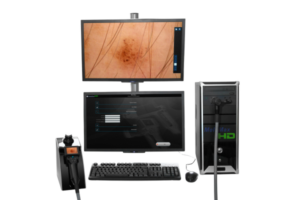

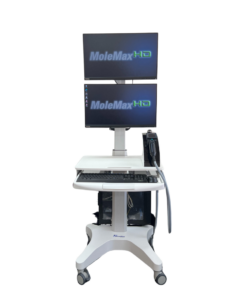

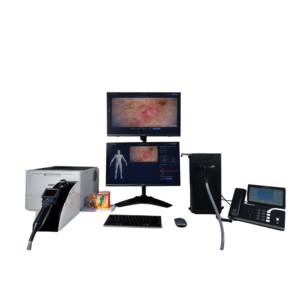

MODULAR DESKTOP VERSION OF MOLEMAX HD WITH ALL OPTIONS

MoleMax HD MODULAR – The desktop version of MoleMax HD, not compromising version with full and complete MoleMax HD hardware packed in a desktop design.

It incorporates all features of standard MoleMax HD system but does not include MoleMax Trolley. Available also in version with two widescreen monitors, standard or touchscreen.

All features of MoleMax HD in a portable version – where space is an issue!

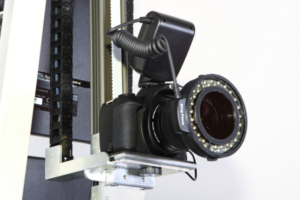

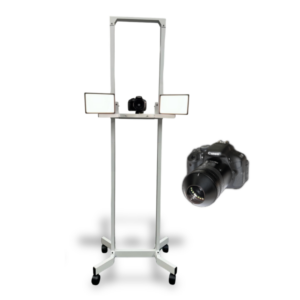

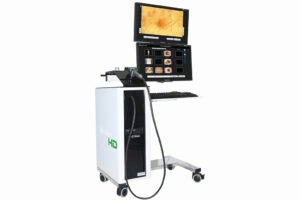

MOLEMAX HD OR MOLEMAX HD PRO INCLUDING AUTOMATIC MOTORIZED TOTAL BODY MAPPING STAND FOR FULL BODY PHOTOGRAPHY!

This System offers full integration of automatic total body mapping stand into the MoleMax HD System with use of Canon SLR camera for fully controlled automatical session with 16 positions.

Apart from classical features of MoleMax HD System, integrated AMTBM Stand provides interface for taking a complete body mapping session with LiveImage and a real full HD preview before saving. Camera is positioned on a special motorized tray and changes position as necessary due to the position of the photographed body part.

Standard body mapping sessions of 10 and 33 TBM positions are available as well as extended 26 images session plus possibility to create own custom TBM sessions. MoleCount software is used for fast lesion enumeration, and TBM session incorporates follow-ups with side-by-side comparison and/or image overlay as well.

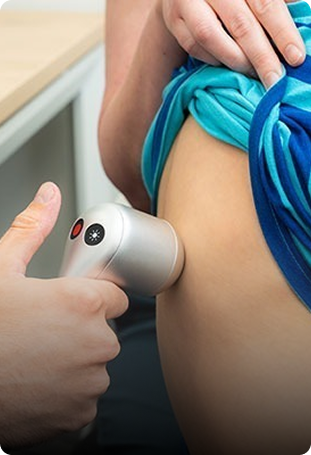

PhotoMAX PRO DLFII – ADVANCED DIGITAL DERMOSCOPY SET

PhotoMAX PRO DLFII offers digital video imaging from clinical overview up to advanced Dermoscopy, all images in high resolution quality. Together with all new and redeveloped PhotoMAX Documentation Software it offers ideal Photo-Dermoscopy solution

Featuring polarized and non-polarized illumination, a 6-element lens design for superior resolution, zoom, camera-controlled automatic polarization change, this system is the go-to device for situations where only the best dermoscopic image quality will suffice.

The system includes DermLite Foto II Pro Lens and Canon EOS Digital SLR Camera, and is delivered for an easy self-installation in a portable hardcase box. Compatible with Windows 7 (and newer) computers and laptops.

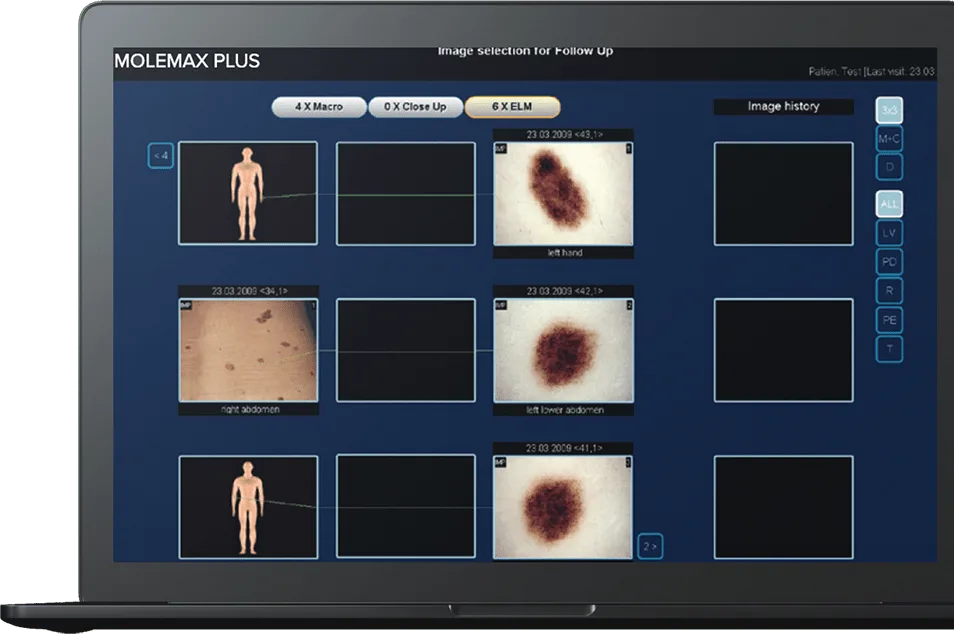

PhotoMAX 4.0 SOFTWARE-IMAGE ACQUISITION AND DATABASE SOFTWARE

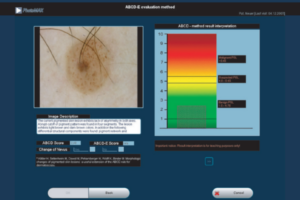

PhotoMAX is a unique programme package for digital image capture and dermoscopy that has been specially developed for the diagnostic processes and documentation using digital cameras.

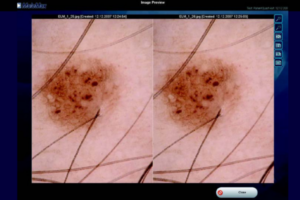

It provides a simple way for DELM examinations together with a side by side comparison of images. This monitors the development of pigmented lesions and allows comparison of alteration over an extended period of time.

Samme applies to clinical and overview images as well.

Compatible with Windows XP, Windows 7, Windows 8 and Windows 10 in 32-bit and 64-bit versions! Full trial version (30 days) available!

Currently available in brand NEW Release 4.0

TrichoScan CAN BE VIEWED AS A MODIFICATION OF THE CLASSIC TRICHOGRAMM.

The software quantifies the number of hairs and the anagen- telogen ratio within one operation.

The use of TrichoScan initially involves shaving a scalp area. After three days, the hairs in the shaven area are dyed and a digital photograph is taken at 30- time magnification and saved. The TrichoScan Software works on the basis that anagen hairs do not grow. The software uses this as a basis for its calculation of the anagen – telogon ratio. The area to be shaved is chosen using the same criteria as for epilation with the classic richogramm technique.

Images taken sequentially, i.e. before and after therapy, allow detailed conclusions to be made about the success or failure of a therapeutic approach. The advantages of this method lie in it simple and speedy photographic processing, the painlessness of the procedure and the reproducibility of the results.

The specially developed software program TrichoScan allows you to automatically measure of the above described parameters in situating the images taken with the MoleMax DELM camera. For the automatic analysis with TrichoScan a certain hair area needs to be shaved (appr. 1,8 cm2), dyed and digitally documented at a 30 time magnification. In contrast to the traditional Trichogram, TrichoScan is painless, reproducible and allows a digital documentation. It enables to compare different capacities of hair growth promoting substances (anagen/telogon) and can be used for monitoring the treatment through MoleMax.
